Description

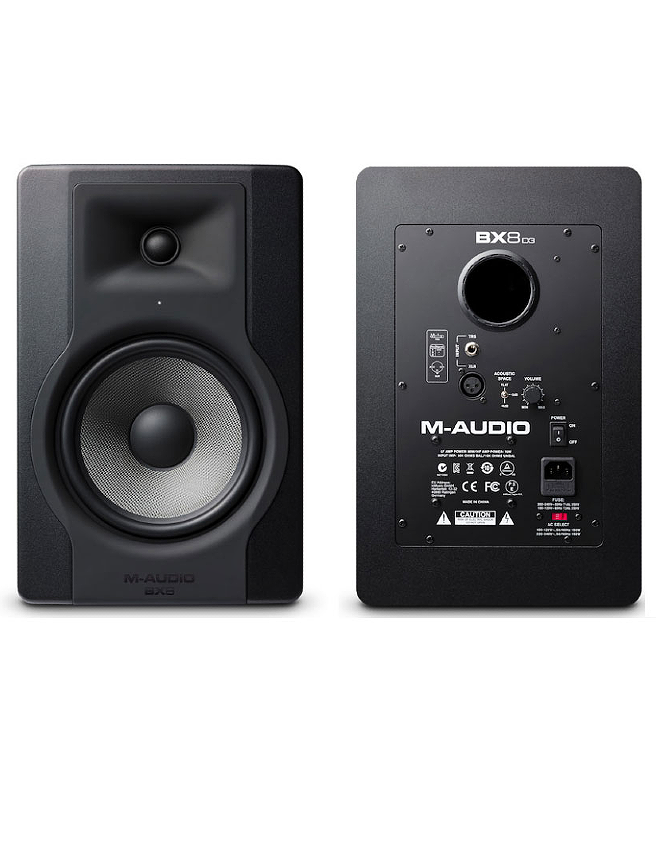

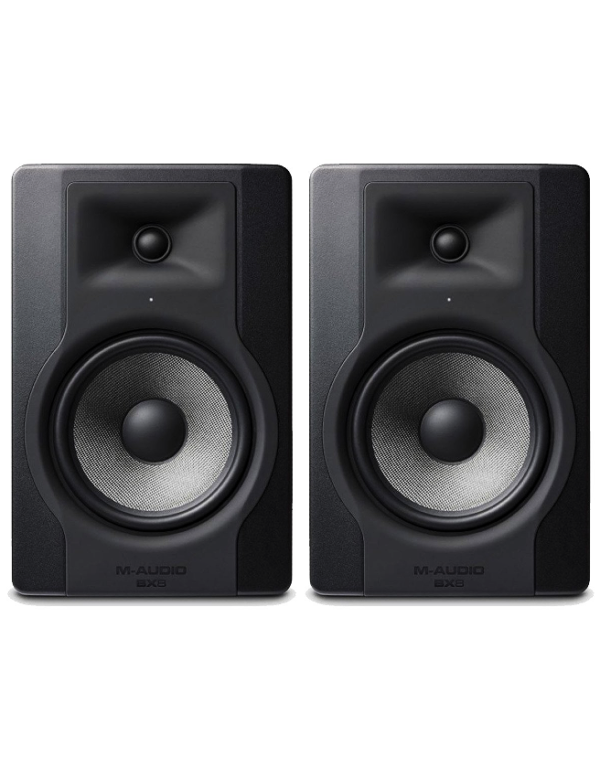

M-Audio BX8 D3 8 inch
Powered Studio Monitors
M-Audio BX8 D3 Features:
- 150W active studio monitor with 8″ military-grade Kevlar low-frequency driver and 1.25″ silk dome tweeter
- Bi-amplified design delivers a sound that’s both powerful and precise
- Custom waveguide ensures accurate dispersion for an incredibly tight soundstage
- Optimized rear-mounted port produces defined low-end response with bass extension down to 37Hz
- Acoustic Space Control tailors your monitor to your mix space
- Volume control for dialing in the perfect playback level
- Balanced combo input allows for flexible installation
- Front-panel LED shines brightly when the speaker is positioned at an ideal angle
Tech Specs
| TYPE | 2-way near-field studio reference monitors |
| LOW FREQ. DRIVER | 8 inch (203 mm) Kevlar curved cone with high temperature voice coil and damped rubber surround, magnetically shielded |
| HIGH FREQ. DRIVER | 1.25 inch (32mm) magnetically shielded natural silk dome |
| FREQUENCY RESPONSE | 37Hz – 22kHz |
| CROSSOVER FREQUENCY | 2.0kHz |
| LOW FREQ. AMPLIFIER POWER | 80W |
| HIGH FREQ. AMPLIFIER POWER | 70W |
| MAXIMUM PEAK SPL | 114dB SPL – Full Bandwidth Pink Noise Measured |
| INPUT SENSITIVITY | -12dBU |
| INPUT CONNECTORS | 1x XLR balanced input connector 1x TRS balanced/unbalanced input connector |
| INPUT IMPEDANCE | 10kΩ balanced, 20kΩ unbalanced |
| POLARITY | Positive signal at + input produce outward LF cone displacement |
| PROTECTION | RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse |
| POWER | Voltage: 100–120V, 50/60 Hz / 220–240V, 50/60 Hz Consumption: 150W |
| FUSE | 220–240V~ T1AL, 250V / 100–120V~ T2AL, 250V |
| CABINET | Vinyl-laminated high-acoustic-efficiency MDF |
| DIMENSIONS(WIDTH X DEPTH X HEIGHT) | 9.8” x 11.9” x 15.1” / 250 x 302 x 384 mm |
| WEIGHT | 23.1 lb / 10.5 kg |
