M-Audio M-Track Duo USB Audio Interface (Coming Soon)

Coming Soon

Brand: M-AUDIO
Model: M-Track Duo

Category: Product ID: 2930

Description

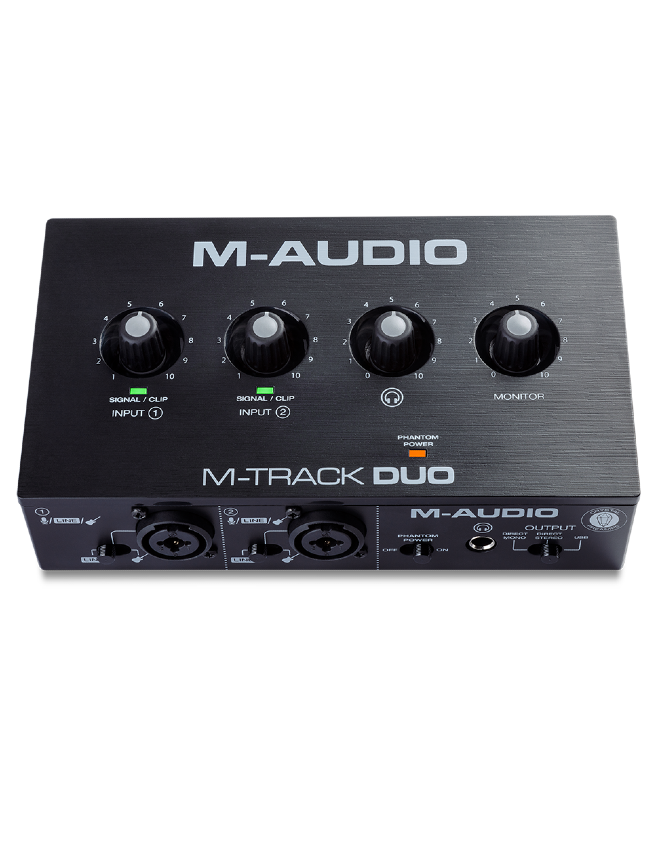

M-Track Duo

48-KHz, 2-channel USB Audio Interface with 2 Combo Inputs with Crystal Preamps, and Phantom Power

Key Features

  • 2-Channel USB recording interface for Mac and PC
  • (2) Combo inputs with Crystal Preamps amazing audio quality
  • Dedicated switches to enable any microphone, instrument, or line level device
  • +48V phantom power for connecting studio condenser microphones

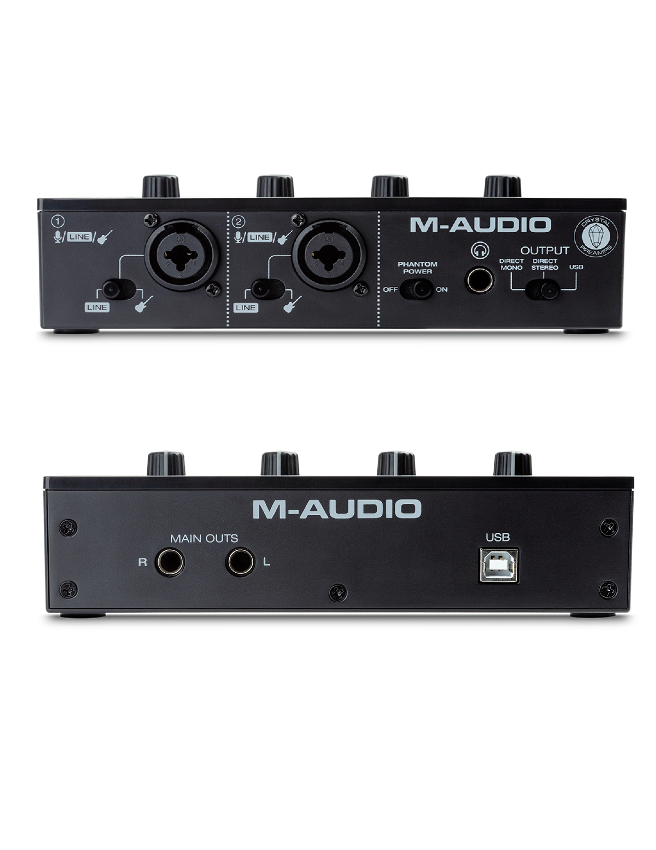

  • Stereo 1/4” outs; 1/4” headphone out with independent level controls
  • USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
  • Included – Pro Tools | First M-Audio Edition, MPC Beats, AIR Music Tech Xpand!2, Eleven Light guitar amp plugins and 20 Avid effects

Technical Specifications

Mic Input (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio 109 dB (A-weighted)
THD+N 0.003% (min. gain, 0 dBu out, A-weighted)
Preamp EIN -128 dBu (max. gain, 40 Ω source, A-weighted)
Gain Range Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB



Line Input (balanced 1/4″ [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Sensitivity -43 dBu
THD 0.002% (min. gain, 0 dBu out, A-weighted)
Gain Range Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB



Instrument Input (unbalanced 1/4″ [6.35 mm] TS)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
THD+N 0.005% (min. gain, 0 dBu out, A-weighted)
Input Impedance 1 MΩ
Gain Range Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB



Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio 109 dB (A-weighted)
THD 0.002% (0 dBu out, A-weighted)
Max Output Level +4 dBu



Headphone Output (1/4” [6.35 mm] TRS)
Power 60 mW/Ch, 32 Ω
Frequency Response 20 Hz – 20 kHz (+0.5 dB)
THD+N 0.02% (A-weighted)
Signal-to-Noise Ratio 100 dB (A-weighted)

What’s In The Box

M-Track Duo

USB-B–to–USB-A Cable

Software Download Cards

User Guide
